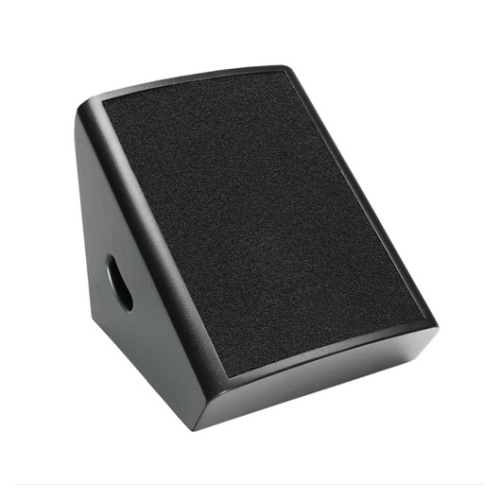

10" stage speaker cabinet

Model: CWF10
Place of Origin: Zhejiang,China (Mainland)
Brand Name: Hony-audio
Certificates:: RoHs, CE
Colour: Black
Applications: Stage performance, Any environment where enjoyable music


skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:2.0~200.0 USDProduction Capacity:5000
Trade Term:FOBPacking:Carton
Payment Terms:L/C, T/TDelivery Date:50 days
Min. Order:100 Piece/Pieces
Means of Transport:Ocean

Model name:                             10" stage speaker cabinet
Model type:                                 passive   10"
Power Handling:                       150W RMS / 300W (max)
Impedance:                                8 Ω
Sensitivity(1m/w):                      97dB
Frequency Response (-3dB): 90~20000Hz
Low Frequency Driver:              transducer 8Ω impedance
                                                      10" (250mm) diameter
                                                      50" high temperature voice coil on glass
                                                      pulp cone
High Frequency Driver:             Compression Driver 8Ω impedance
                                                    1" (25mm) exit, 1.35" (34mm) voice coil
                                                      Titanium diaphragm
Crossover:                                  2.8kHz     12dB/Oct
Horizontal coverage angle:      90°
Vertical coverage angle:           45°

Cabinet Material:                        wood
Grille:                                            Steel with foam inside
Handles:                                       one on each side
Finish:                                           Black structure paint
Dimensions (WxHxD):               300 x 310x 370mm
Packing:                                        320 x 330 x 390mm
Weight (kg):                                  8.5kg(net) / 10.5kg(gross)
